Gear Wheel IGS-F

Sensing Gear Wheel

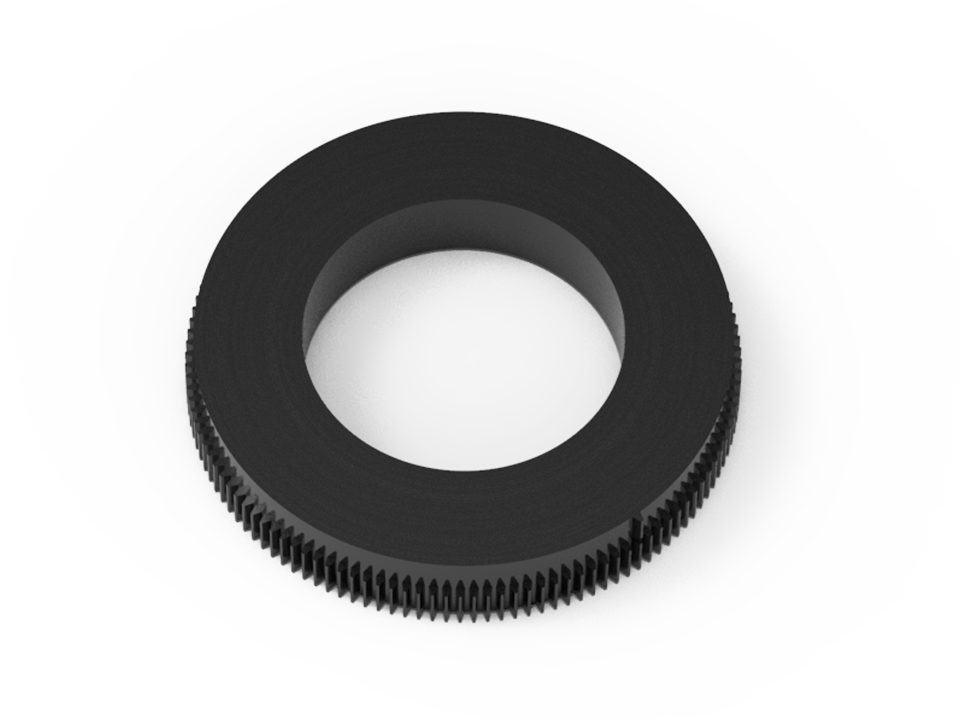

IGS-F Gear Wheel

Match with IGS-F series encoders, measuring mechanical speed and position in a non-contact manner

  • Number of teeth: 128 to 512
  • Module : 03. 04. 05. 08. 10
  • Outer Diameter : 25mm to 500mm
  • Refer to below chart for standard specifications

Specification

Model Number of teeth ID(mm) OD(mm)
M4 128-40T 128 40 52
M4 192-60T 192 60 77.6
M4 256-82T 256 82 103.2
M4 256-88T 256 88 103.2
M4 384-125T 384 125 154.4
M4 512-160T 512 160 205.6
